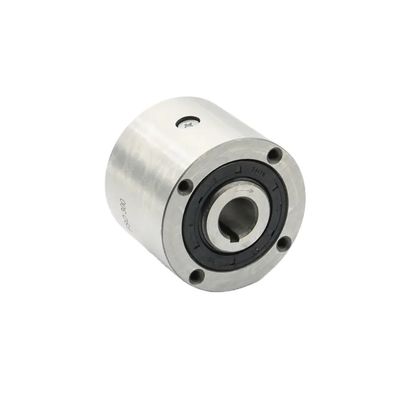

Name: FS600 FS700 FS800 HPI Sprag Freewheel Clutch Bearing 450-3000Nm Torque
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: Série FS / HPI
Price: 179.00 USD
Availability: InStock

Aperçu Produits Une incidence d'embrayage de manière

FS600 FS700 FS800 HPI Sprag Freewheel Clutch Bearing 450-3000Nm Torque

Détails sur le produit:

Lieu d'origine:	Jiangsu, Chine
Nom de marque:	SUMA OR OEM
Numéro de modèle:	Série FS / HPI

Conditions de paiement et expédition:

Quantité de commande min:	2
Prix:	$129-229

Contact

Description de produit détaillée

Cote de précision:	P0	Taper:	Sprag, type à rouleau
Matériel:	GCR15	Largeur:	63.5-127mm
Poids:	1,6 à 19 kg	Couple:	450-3000 nm
Diamètre intérieur:	15-70mm	Diamètre extérieur:	76.2-180.975 mm
Lubrifiant:	Lubrifiant en poudre MOS2	Charge dynamique:	245kN
Charge statique:	1220kn	Dépassement des vitesses:	3000/900 min-1
Le couple de traction:	18-156 NCM	Type de joint:	Joints à lèvres, joints de labyrinthe
Support de roulement:	Deux roulements à billes
Mettre en évidence:	HPI sprag freewheel clutch bearing , high torque one way clutch bearing , FS600 FS700 FS800 clutch bearing

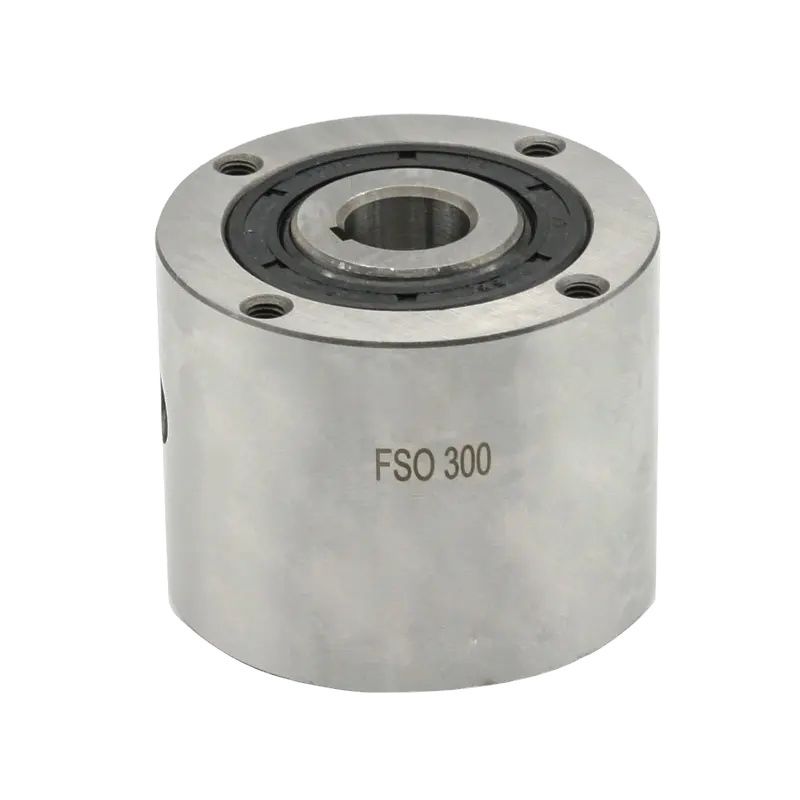

FS600 FS700 FS800 HPI Sprag Type Freewheel Clutch One Way Bearing

The FS600, FS700, and FS800 HPI series are high-performance sprag type freewheel clutch bearings designed for one-directional operation in industrial machinery applications.

Product Specifications

Model:

HPI / FS / FSO

Material:

GCr15

Type:

Sprag

Inner Diameter:

15-70mm

Outer Diameter:

76.2-180.975mm

Weight:

1.6-19kg

Lubricant:

MoS2 powder lubricant

Load Ratings:

Dynamic: 245KN | Static: 1220KN

Application:

Industrial Machines

Key Features

Sprag type freewheels are self-contained, sealed and bearing supported
Utilizes two ball bearings for enhanced durability
Available with oil or grease lubrication depending on type
Full sprag complement provides high torque capacity for given diameter
Overload protection through sprag-to-sprag abutment prevents sprag tilt
HPI models are oil lubricated with standard shaft lip seals
FSOGR models are grease lubricated with optional labyrinth seals
HPI series specially designed for high-speed indexing applications

Technical Specifications Table

Type	Size	Overrunning speeds	Drag Torque [Nm]	nmax [min-1]	dH7-bxh [mm]	d4 [mm]	A [mm]	B [mm]	C [mm]	E [mm]	F [mm]	G [mm]	K [mm]	f [mm]
HPI/FS 300	379	3000/900	15-5x5	12...19	63.5	76.2	60.45	1.6	28.58	66.67	13	0.8	1.6	18
HPI/FS 400	407	2800/850	18-6x6	12...22	69.9	88.9	68.07	1.6	30	73	13	0.8	2.7	27
HPI/FS 500	1621	2500/800	30-8x7	19...33	88.9	107.95	85.73	1.6	45	92	16	1.5	4.8	31
HPI/FS 600	3105	2200/750	45-14x9	24...57	95.3	136.53	92.2	1.6	63.5	120.6	16	1.6	8.6	62
HPI/FS 700	6900	1600/450	60-18x11	48...82	127	180.98	123.9	1.6	90	158.8	20	1.6	19	156
