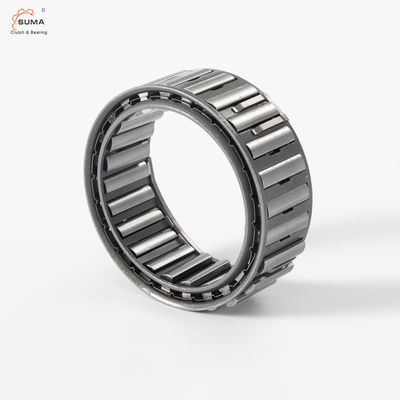

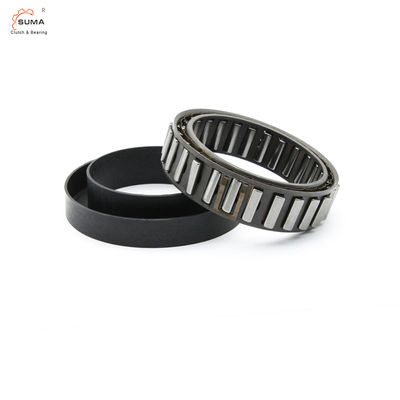

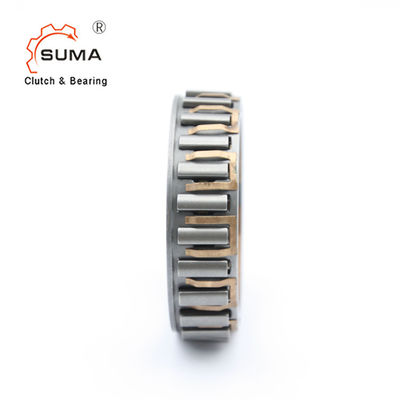

Name: Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: DC 5776B 4C
Price: 5.60 USD
Availability: InStock

Aperçu Produits Une incidence d'embrayage de manière

Sprag Clutch DC 5776B 4C One Way Bearing 63Nm Torque 10mm Thickness

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	SUMA
Numéro de modèle:	DC 5776B 4C

Conditions de paiement et expédition:

Quantité de commande min:	2
Prix:	$5.60-7

Contact

Description de produit détaillée

Cote de précision:	P0	Type de joints:	Ouvrir
Taper:	Cale	Fossé:	GCR15
Épaisseur:	10 mm	Quantité de fosses:	12 pièces
Capacité de couple:	63 Nm	Diamètre extérieur:	74.42
Alésage:	57,76	Poids:	0,03 kg
Vitesse de dépassement (extérieur):	750	Vitesse de dépassement (intérieur):	1500
Dureté de surface:	HRC 60 à 62	Dureté à coeur:	HRC35-45
Rugosité de surface:	22CLA
Mettre en évidence:	Sprag clutch one way bearing 63Nm torque , DC 5776B one way clutch bearing , 10mm thickness one way bearing

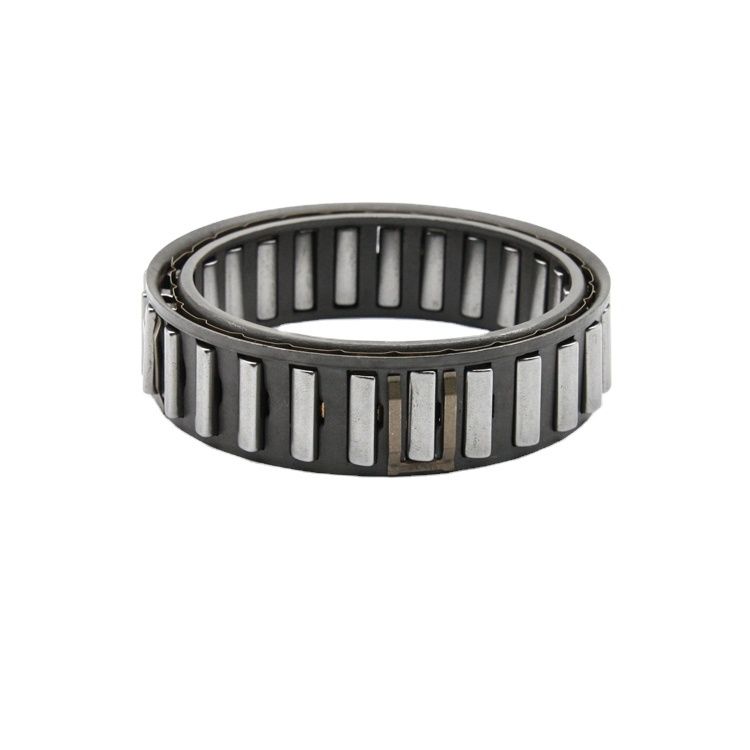

DC5776A DC5776B DC5776C Sprag Overrunning Clutch One Way Bearing

High-quality sprag type freewheel cage without inner or outer races, designed for power transmission equipment.

Product Specifications

Item	DC5776-N
Outer Diameter	74.42
Bore Size	57.76
Nominal Torque	63
Weight	0.03kg
Sprags Quantity	12
Overrunning Speed (outer race)	750
Overrunning Speed (inner race)	1500
Port	Shanghai; Ningbo
Delivery Time	1-2 Days

Key Features

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing.

The DC type version-N accepts all types of lubricants currently used in the power transmission equipment.

Tolerance Requirements

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width "e", without any recess, to ensure proper freewheel function.

Hardness Specifications

Surface hardness: HRC 60 to 62 (minimum depth of 0.6mm)
Core hardness: HRC 35 to 45
Surface roughness not to exceed 22CLA
Maximum taper between races: 0.007mm for 25mm width

Available Sizes

Type	Drag Torque (NM)	Size (mm)	Number of Clips
DC2222G	50	22.225
DC2776	95	27.762
DC3034	99	30.34
DC3175(3C)	127	31.75	3
DC3809A	220	38.092
DC4127(3C)	179	41.275	3
DC4445A	290	44.45
DC4972(4C)	245	49.721	4
DC5476A	420	54.765
DC5776A	483	57.76
