Name: FE422Z Sprag Type One Way Clutch Bearing 12mm Bore 22mm Outer Dia
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: FE422Z
Price: 2.40 USD
Availability: InStock

Aperçu Produits Une incidence d'embrayage de manière

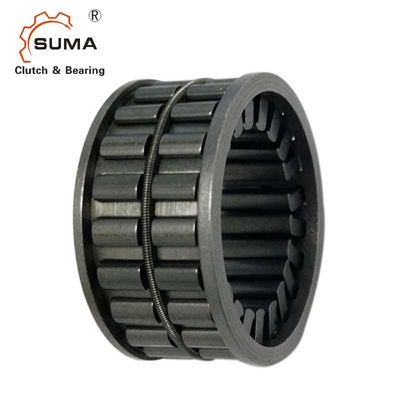

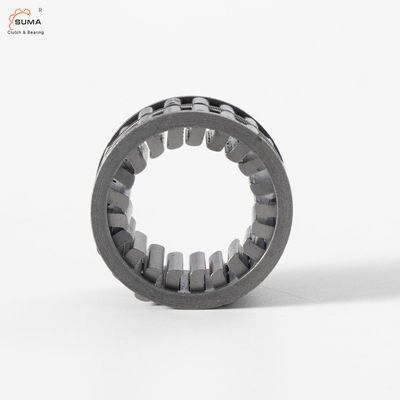

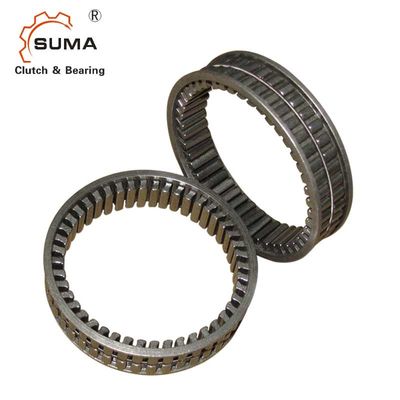

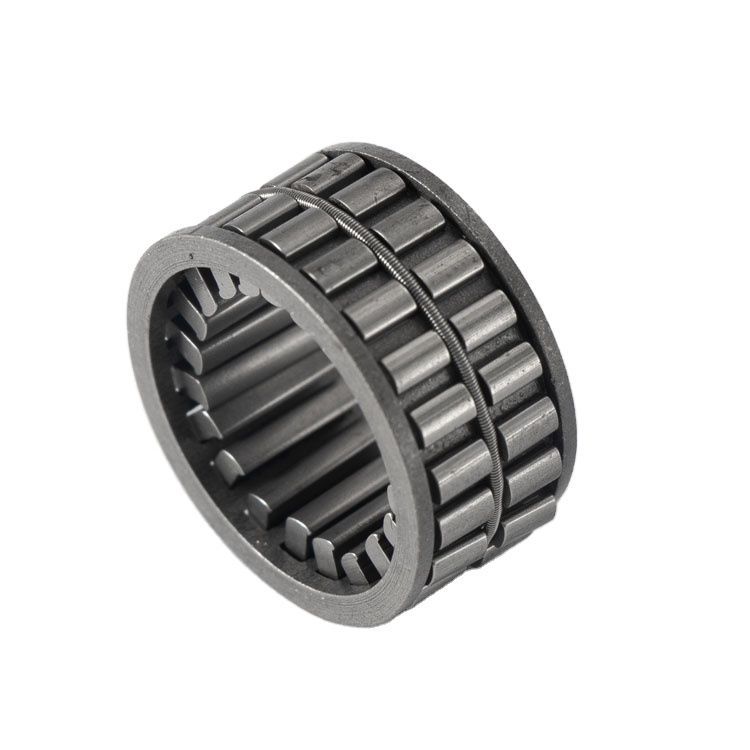

FE422Z Sprag Type One Way Clutch Bearing 12mm Bore 22mm Outer Dia

Détails sur le produit:

Lieu d'origine:	Jiangsu, Chine
Nom de marque:	SUMA
Numéro de modèle:	FE422Z

Conditions de paiement et expédition:

Quantité de commande min:	2
Prix:	$2.40-3.50

Contact

Description de produit détaillée

Cote de précision:	P0	Type de joints:	Ouvrir
Taper:	Spag, embrayage en roue libre	Matériel:	Chromé
Couple:	44 nm	Vitesse de marche en ralenti:	5300 tr / min
Diamètre de l'alésage:	12 mm	Diamètre extérieur:	22 mm
Couple fe422:	48 nm	Couple fe422 z:	44 nm
Couple fe422 z2:	21 nm	Vitesse de ralenti Fe422:	5300 tr / min
Vitesse de ralenti Fe422 z:	5300 tr / min	Vitesse de ralenti Fe422 Z2:	5300 tr / min
Rpm maximale:	10000 tr / min
Mettre en évidence:	12mm bore one way clutch bearing , 22mm outer diameter sprag clutch bearing , FE422Z one way clutch bearing

FE422Z FE 422 Z Sprag Type One Way Clutch Bearing FE 442 Z2

FE series Freewheel-clutches transmit or support torque moment by friction contact in one direction and permit idling in the opposite direction.

Applications

Indexing elements: Change from oscillating to intermittent rotary motion.
Backstops: Prevent self-reversing due to load condition when the machine is not activated.
Overrunning clutches: Maintain driven unit activated during slowdown, or switch to higher speed in two-speed operation.

Lubrication

Lubrication is critical for maximum freewheel clutch life and reduced drag. Refer to our Lubrication Selection Table for proper selection.

Note: Clutches (except sealed series FND, FPD, FK 62...-RS, FK 62...-2RS, FKN...-RS, and FKN...-2RS) are shipped rust-protected but not lubricated.

Dimensions and Specifications

dL	DL	Part Number	Torque M [N.m]	Part Number	Torque M [N.m]	Part Number	Torque M [N.m]	Idling speed nmax [RPM]
2	10					FE 410 Z2	0.3	10,000
80	88	FE 488	914	FE 488 Z	788			1,300

Product Features

We offer a wide range of freewheel-clutches with varying design features and dimensions to meet requirements for torque, indexing frequency, idling speed, and environment.

For optimal operation, the supporting equipment around the clutch must be built accurately and of high quality. We provide support units or complete assemblies as needed.

Product Images
