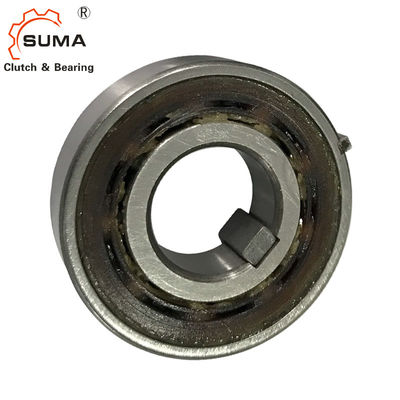

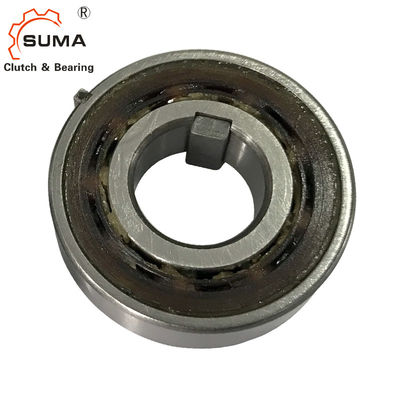

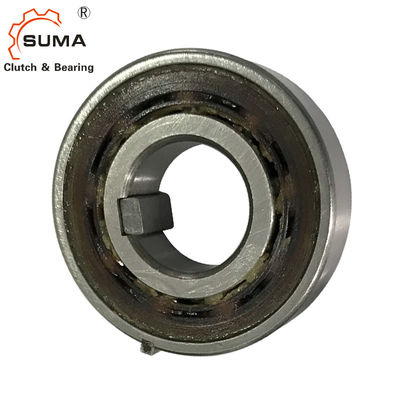

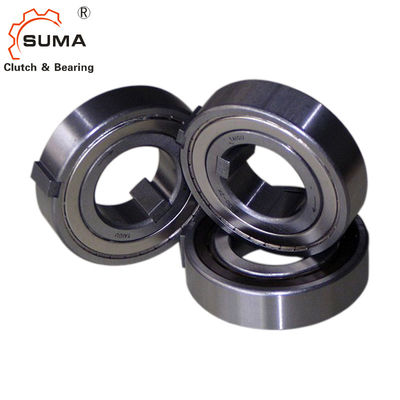

BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD

BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD

  • BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD
  • BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD
  • BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD
  • BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD
  • BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD
  • BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD
BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD
Détails sur le produit:
Lieu d'origine: Jiangsu, Chine
Nom de marque: SUMA or OEM
Numéro de modèle: BB 30-2K-K
Conditions de paiement et expédition:
Quantité de commande min: 1
Contact
Description de produit détaillée
Cote de précision: P6 Type de joints: Scellé
Alésage: 30 mm Diamètre extérieur: 62 mm
Matériel: GCR15 Capacité de couple: 140 NM
Vitesse de dépassement maximum: 2000 r / min (intérieur), 1100 r / min (extérieur) Le couple de traction: 0,03 n * m
Température de fonctionnement: -30°C à +100°C Poids: 56,6 n
Charges de roulement: CR: 11900 N, Cor: 7900 N Diamètre de l'arbre: 30 + 0,028 + 0,015 mm
Logement du diamètre: 62-0.022-0.003 mm Dimensions clés: 8x5x16 mm (intérieur), 6x4x16 mm (extérieur)
Lubrification: Pré-gravi, lubrification à l'huile compatible
Mettre en évidence:

BB 30-2K-K one way bearing 30mm bore

,

sprag type one way clutch bearing 62mm OD

,

one way bearing with 30mm bore

BB 30-2K-K Sprag Type Bearings Cam Clutch One Way Bearing
BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 0
Product Specifications
Item BB-2K-K
Material GCr15
Outer dia. 62 mm
Bore size 30 mm
Torque Capacity 140 Nm
Max. Overrunning(inner race) 2000 r/min
Max. Overrunning(outer race) 1100 r/min
Port Shanghai; Ningbo
Delivery time 10-15 days
Product Features
  1. BB series Cam Clutch is designed for press fit installation.
  2. BB-1K-K and BB-2GD 1K-K series have a keyway on the inner race.
  3. BB-2K-K series has a keyway on both the inner and outer race.
  4. Correct interference dimensions at the shaft and housing must be maintained.
  5. Refer to the table for tolerance of the shaft and housing for each series.
  6. BB, BB-1K and BB-2K Clutches have dust seal protection against particles of 0.25mm and over.
  7. The arrow on the inner race shows the direction of inner race engaging.
  8. To install the clutch, use a press tool of appropriate diameter.
  9. Do not hammer or apply other shock to the clutch.
  10. Ensure housing has enough strength for press fitting installation.
  11. Operating temperature range: -30°C to +100°C.
BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 1
Dimensions and Capacities
Dimensions in mm
Model Torque Capacity Max. Overrunning Inner Race Max. Overrunning Outer Race Drag Torque (N*m) A B C D r Weight (N) Bearing Loads
BB15 29 3600 2000 0.01 11 16 35 15 0.6 50 70
BB17 43 3500 1900 0.01 12 17 40 17 0.6 80 100
BB20 61 3000 1600 0.014 14 19 47 20 1 120 150
BB25 78 2500 1400 0.017 15 20 52 25 1 150 200
BB30 140 2000 1100 0.03 16 21 62 30 1 230 280
BB35 173 1800 1000 0.034 17 22 72 35 1.1 320 410
BB40 260 1800 900 0.04 22 27 80 40 1.1 400 600
Note: Model No. marked on the inner race is only "K" for both "1K" and "2K". (Example: the mark "BB25-K" for both BB25-1K and BB25-2K)
Tolerance for Shaft and Housing
Standard Models
Model Shaft Dia. Housing Dia.
BB15 15+0.023+0.012 35-0.012-0.028
BB17 17+0.023+0.012 40-0.012-0.028
BB20 20+0.028+0.015 47-0.012-0.028
BB25 25+0.028+0.015 52-0.014-0.033
BB30 30+0.028+0.015 62-0.014-0.033
BB35 35+0.033+0.017 72-0.014-0.033
BB40 40+0.033+0.017 80-0.014-0.033
1K-K Series
Model Shaft Dia. Housing Dia.
BB15-1K-K 15-0.008-0.028 35-0.012-0.028
BB17-1K-K 17-0.008-0.028 40-0.012-0.028
BB20-1K-K 20-0.010-0.031 47-0.012-0.028
BB25-1K-K 25-0.010-0.031 52-0.014-0.033
BB30-1K-K 30-0.010-0.031 62-0.014-0.033
BB35-1K-K 35-0.012-0.037 72-0.014-0.033
BB40-1K-K 40-0.012-0.037 80-0.014-0.033
2K-K Series
Model Shaft Dia. Housing Dia.
BB15-2K-K 15-0.008-0.028 35-0.018-0.002
BB17-2K-K 17-0.008-0.028 40-0.018-0.002
BB20-2K-K 20-0.010-0.031 47-0.022-0.003
BB25-2K-K 25-0.010-0.031 52-0.022-0.003
BB30-2K-K 30-0.010-0.031 62-0.022-0.003
BB35-2K-K 35-0.012-0.037 72-0.025-0.006
BB40-2K-K 40-0.012-0.037 80-0.025-0.006
Dimensions of Keys and Keyways
Model b2js10 t1 t2 Inner race Key b×h×length Outer race Key b'× h' ×length
BB15-1K-K 5.0 1.9 1.2 -- --
BB15-2K-K 2.0 0.6 5x3x11 2x2x11
BB17-1K-K 5.0 1.9 1.2 -- --
BB17-2K-K 2.0 1 5x3x12 2x2x12
BB20-1K-K 6.0 2.5 1.6 -- --
BB20-2K-K 3.0 1.5 6x4x14 3x3x14
BB25-1K-K 8.0 3.6 1.5 -- --
BB25-2K-K 6.0 2 8x5x15 6x4x15
BB30-1K-K 8.0 3.1 2.0 -- --
BB30-2K-K 6.0 2 8x5x16 6x4x16
BB35-1K-K 10.0 3.7 2.4 -- --
BB35-2K-K 8.0 2.5 10x6x17 8x5x17
BB40-1K-K 12.0 5.0 3.3 -- --
BB40-2K-K 10.0 3 12x8x22 10x6x22
Note: The dimension of t2 for BB25-1K-K, BB25-2K-K and BB25-2GD 1K-K is 0.5 mm shallow compared to DIN 6885. 3. Process the keyway on the shaft 0.5 mm deeply to use DIN standard key. All other models are dimensionally interchangeable with competitors.
Lubrication
  1. Since grease is already applied before delivery, there is no need to apply grease before use.
  2. If the clutch is used with an oil lubricant, the oil lubrication should be applied inside the unit always.
  3. Do not use greases or lubricants with EP additives.
BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 2 BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 3 BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 4 BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 5 BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 6
Certifications
BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 7
Company Information
Changzhou Suma Precision Machinery Co., Ltd (Changzhou Tianniu Clutch Factory) is a manufacturer specialized in producing various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 8
We follow "Best Quality, Best Price, Fast Delivery, Best Service" to make all of our old and new customers satisfied.
Our Advantages
  1. Advanced producing equipment
  2. Strict requirement for the raw material
  3. Complete & perfect process flow
  4. Good quality of each batch of the product
  5. Different grades of price for different quality
BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 9 BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 10 BB 30-2K-K Sprag Type One Way Bearing 30mm Bore 62mm OD 11
Frequently Asked Questions
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q: What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
If you have any needs, please contact me at any time!
