Name: NFR45 One Way Clutch Bearing 1500Nm Torque 1000RPM
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: NFR45
Price: 186.00 USD
Availability: InStock

Aperçu Produits Une incidence d'embrayage de manière

NFR45 One Way Clutch Bearing 1500Nm Torque 1000RPM

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	SUMA
Numéro de modèle:	NFR45

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	$175-198

Contact

Description de produit détaillée

Taper:	Type de rouleau	Cote de précision:	P0
Type de joints:	Ouvrir	Épaisseur:	63 mm
Capacité de couple:	1500Nm	Dépassements de race intérieure:	1000 tr / min
Dépassements de race externe:	Pour les véhicules à moteur à combustion	Poids:	4 kg
Alésage:	8-130 mm	Taille de la course extérieure:	37-300 mm
Dépassement des vitesses:	1000-3600rpm	Plage de couple:	20-34750n.m
Gamme d'épaisseur:	20-180mm	plage de poids:	0,1 à 68 kg
Support de roulement:	Acier sur les roulements en acier / billes
Mettre en évidence:	One Way Clutch Bearing 1500Nm torque , One Way Clutch Bearing 1000RPM , NFR45 One Way Clutch Bearing

NFR45 NFR 45 One Way Backstopping Clutch Freewheel Bearings

Product Specifications

Attribute	Value
Applicable Industries	Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works, Energy & Mining
Type	ROLLER TYPE
Precision Rating	P0
Seals Type	OPEN
Product Name	Backstopping Clutch Freewheel Bearings
Thickness	63mm
Torque Capacity	1500Nm
Inner Race Overruns	1000RPM
Outer Race Overruns	2400RPM
Weight	4kg

Product Description

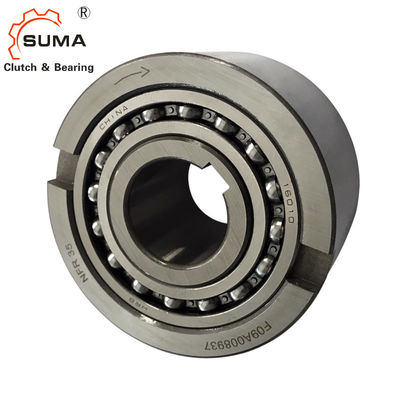

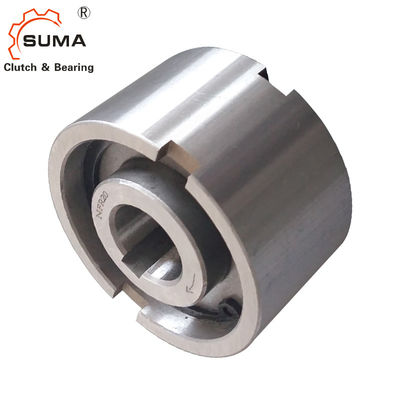

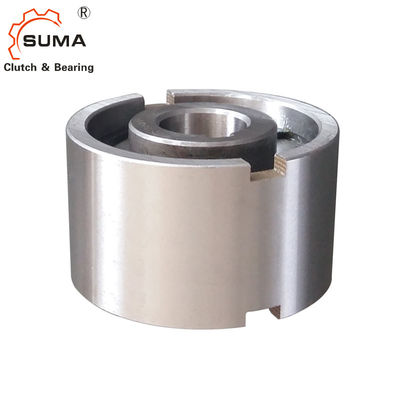

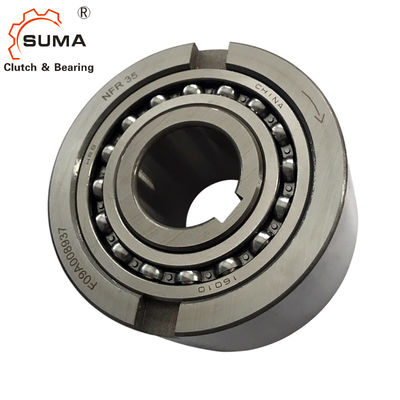

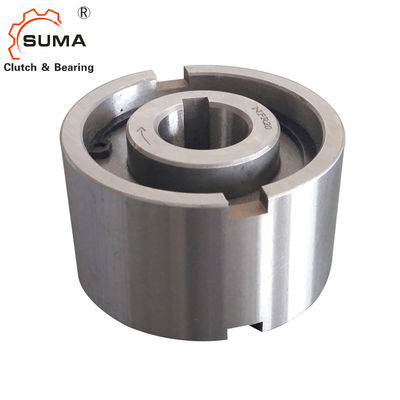

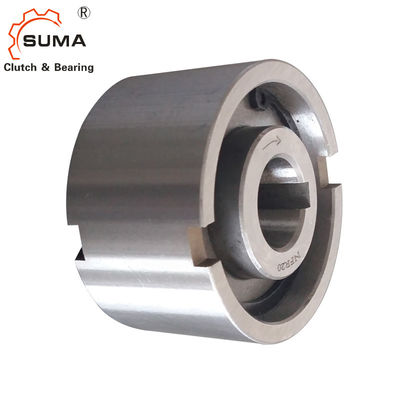

The NFR Series One Way Backstopping Clutch is a bearing-supported roller type freewheel without any sealing. Lubrication and sealing must be provided by the installation, with standard lubrication being oil.

For sizes 8 to 20 units, steel on steel bearing supports the inner race. Above size 20, two 160...Series ball bearings are used, providing higher overrunning speed capacity.

The inner race is keyed to the shaft. The outer race has a positive n6 tolerance for a press fit in a housing to H7. Additional side notches enable positive torque transmission. The housing must be strong enough to prevent expansion after assembly.

Technical Specifications

Model	Torque (N.m)	Overrunning Speeds (rpm)	Dimension (mm)	Weight (Kg)
NFR8-NFR130	20-34750	Inner Race: 1000-250 Outer Race: 1000-3600	Bore Size: 8-130 Outer Race Size: 37-300 Thickness: 20-180	0.1-68

Detailed Parameters

1) Tmax = 2 × TKN

2) Inner race overruns

3) Outer race overruns

Frequently Asked Questions

How do you pack the goods?

Total less than 25 KG: Each in white box + 19*18*9cm box + 29*28*19CM carton box
Total Weight over 100KG: Carton box + Wooden Box / Wooden Pallet

Can I get samples from you?

It is highly encouraged to ask for samples for quality check.

Can you promise to deliver the goods in time?
