Name: LD07 One Way Clutch Bearing 24mm 29.4Nm Torque
Brand: Changzhou Suma Precision Machinery Co., Ltd
SKU: LD07
Price: 567.60 USD
Availability: InStock

Aperçu Produits Une incidence d'embrayage de manière

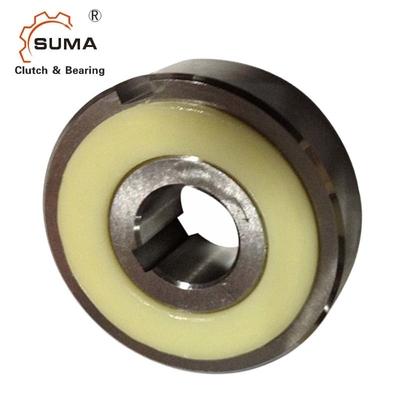

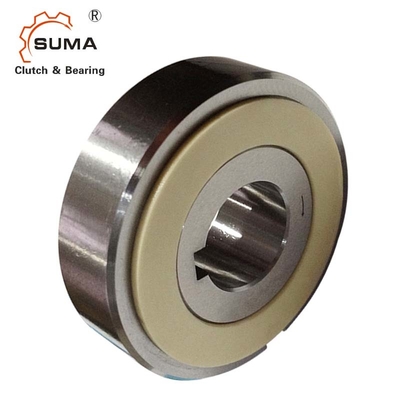

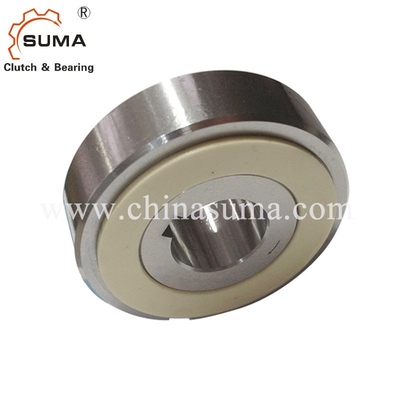

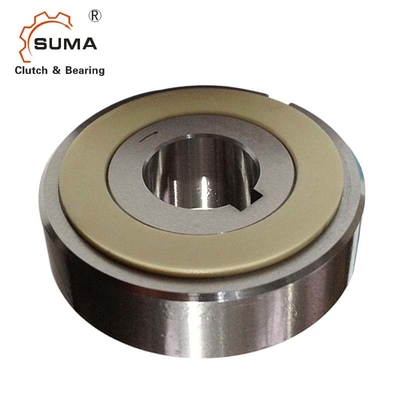

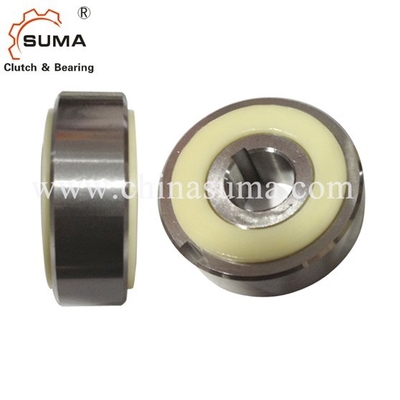

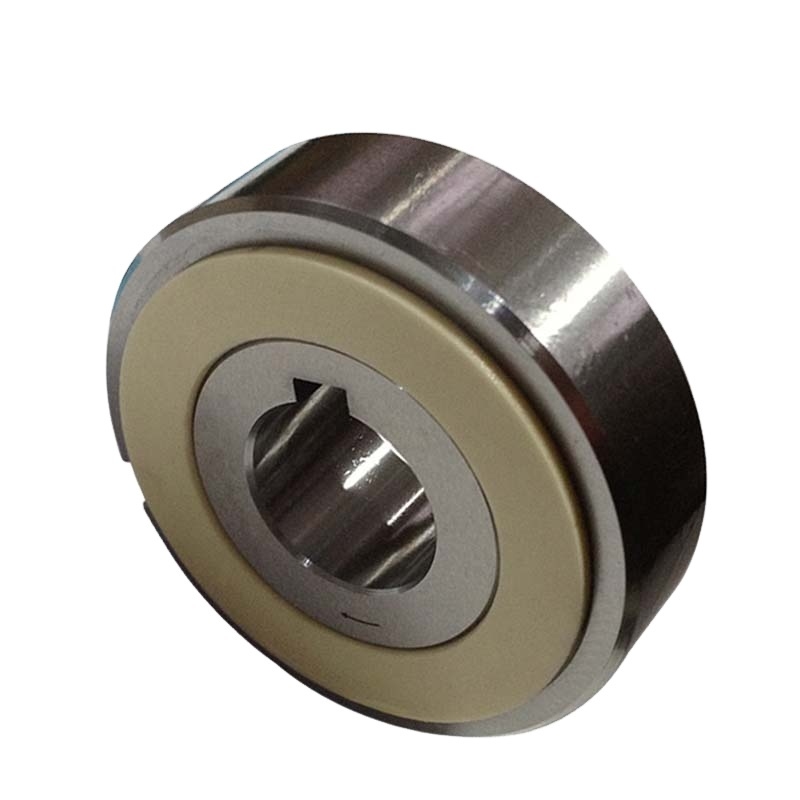

LD07 One Way Clutch Bearing 24mm 29.4Nm Torque

Détails sur le produit:

Lieu d'origine:	Jiangsu, Chine
Nom de marque:	SUMA
Numéro de modèle:	LD07

Conditions de paiement et expédition:

Quantité de commande min:	2

Contact

Description de produit détaillée

Taper:	Série LD	Cote de précision:	P0, P6
Type de joints:	Les phoques	Épaisseur:	24 mm
Poids:	0,55 kg	Capacité de couple:	29.4 nm
Le couple de traction:	0.39Nm	Vitesse de dépassement maximum:	200r / min
Vitesse d'indexation maximale:	100 cycle / min	Charge radiale maximale:	70kgf
Alésage:	25 mm	Diamètre de la course intérieure:	19,5 mm
Veale de race externe:	7x4	Taille de la Veyway:	7x3
Diamètre de la course extérieure:	72 mm
Mettre en évidence:	24mm one way clutch bearing , one way clutch bearing 29.4Nm torque , LD07 one way clutch bearing

Free Wheel One-way Clutch Bearing LD07

Product Attributes

Attribute	Value
Applicable Industries	Garment Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction works, Energy & Mining, Food & Beverage Shops, Other
Type	LD Series
Precision Rating	P0, P6
Seals Type	seales
Thickness	24mm
Weight	0.55kg
Torque Capacity	29.4Nm
OEM	Accept
Stock	Rich
Delivery	in stocks
Package	single box or as your requiements
Port	Shanghai ; Ningbo
Market	global

Product Description

The LD Series Free Wheel One-way Clutch Bearing LD07 is prelubricated with special grease and ready for immediate use. This high-performance clutch bearing is part of our LD04-LD08 product line.

Installation and Usage

No additional lubricant required - comes prelubricated with special grease
When installing on shaft, press inner race slightly with soft hammer to prevent outer race slippage
Always attach the plate to prevent outer race from slipping away from inner race
Coat plate and thrust metal with grease for lubrication
Never apply thrust loads to the clutch - use other devices for thrust loads
Key should conform to JIS B1301-1959 standard
Bores of pulley/sprocket should have H6 or H7 tolerance

Technical Specifications

Model	Torque Capacity (N@m)	Drag Torque (N@m)	Max. Overrunning (r/min)	Max. indexing (cycle/min)	Max.Radial Load When Overrunning (kgf)	Bore Size	A	B	C	D	E	Outer Race Keyway	Weight (kg)
LD04	5.88	0.2	300	100	20	10	4x1.5	19.5	23.9	24	47 -0.014 -0.039	40	5x3	0.25
LD05	9.8	0.29	300	100	30	14	5x2	19.5	23.9	24	52 -0.017 -0.042	45	5x3	0.3
LD06	19.6	0.29	200	100	50	20	5x2	19.5	23.9	24	62 -0.017 -0.042	52	7x4	0.4
LD07	29.4	0.39	200	100	70	25	7x3	19.5	23.9	24	72 -0.017 -0.042	62	7x4	0.55
LD08	49	0.49	200	100	80	30	7x3	19.5	23.9	24	82 -0.017 -0.042	70	10x4.5	0.65
