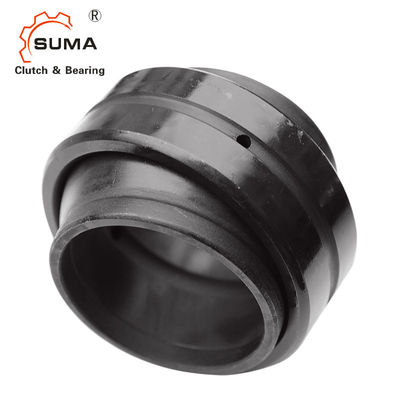

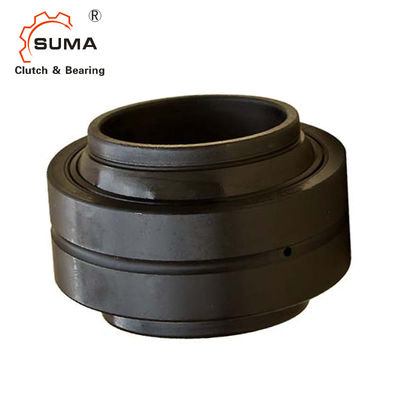

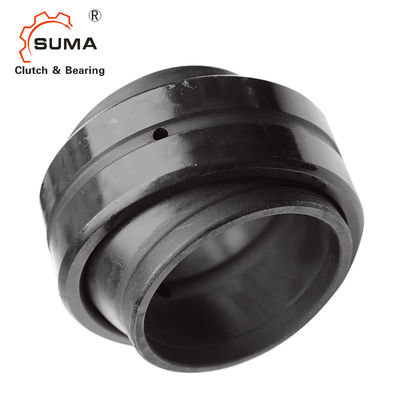

Incidence sphérique radiale extensible de GEEW20ES GCr15
Caractéristiques
L'incidence sphérique radiale extensible de GEEW20ES GCr15 a quelques caractéristiques. Des incidences simples sphériques, le modèle de base est faites avec une surface de contact sphérique coulissante les composants intérieurs et externes.
Selon sa structure et type, peut soutenir la charge radiale, la charge axiale, ou le radial, charge commune axiale agissant simultanément.
Le roulement extérieur commun est dominé par un anneau intérieur et une intégrale. Anneau externe sphérique et l'anneau intérieur de l'intérieur
Composition coulissante sphérique en frottement.
Dimensions et capacités
Incidence Nombre |
Dimensions (millimètres) | KN d'estimations de charge | Poids ≈kg |
|||||||||
d | D | B | C | d1 | le DK | rs | r1s | a | Dynamique | Charge statique | ||
maximum | minute | minute | ≈ | |||||||||
GEEW12ES | 12 | 22 | 12 | 7 | 15,5 | 18 | 0,3 | 0,3 | 4 | 10 | 53 | 0,022 |
GEEW15ES | 15 | 26 | 15 | 9 | 18,5 | 22 | 0,3 | 0,3 | 5 | 16 | 84 | 0,031 |
GEEW16ES | 16 | 28 | 16 | 9 | 20 | 23 | 0,3 | 0,3 | 4 | 17 | 85 | 0,035 |
GEEW17ES | 17 | 30 | 17 | 10 | 21 | 25 | 0,3 | 0,3 | 7 | 21 | 106 | 0,044 |
GEEW20ES | 20 | 35 | 20 | 12 | 25 | 29 | 0,3 | 0,3 | 4 | 30 | 146 | 0,071 |
GEEW25ES | 25 | 42 | 25 | 16 | 30,5 | 35,5 | 0,6 | 0,6 | 4 | 48 | 240 | 0,131 |
GEEW30ES | 30 | 47 | 30 | 18 | 34 | 40,7 | 0,6 | 0,6 | 4 | 62 | 310 | 0,168 |
GEEW32ES | 32 | 52 | 32 | 18 | 37 | 44 | 0,6 | 1 | 4 | 65 | 328 | 0,182 |
GEEW35ES | 35 | 55 | 35 | 20 | 40 | 47 | 0,6 | 1 | 4 | 79 | 399 | 0,253 |
GEEW40ES | 40 | 62 | 40 | 22 | 46 | 53 | 0,6 | 1 | 4 | 99 | 495 | 0,338 |
GEEW45ES | 45 | 68 | 45 | 25 | 52 | 60 | 0,6 | 1 | 4 | 127 | 637 | 0,481 |
GEEW50ES | 50 | 75 | 50 | 28 | 57 | 66 | 0,6 | 1 | 4 | 156 | 780 | 0,558 |
GEEW60ES | 60 | 90 | 60 | 36 | 68 | 80 | 1 | 1 | 4 | 245 | 1220 | 1,15 |
GEEW63ES | 63 | 95 | 63 | 36 | 71,5 | 83 | 1 | 1 | 4 | 253 | 1260 | 1,25 |
GEEW70ES | 70 | 105 | 70 | 40 | 78 | 92 | 1 | 1 | 4 | 313 | 1560 | 1,71 |
GEEW80ES | 80 | 120 | 80 | 45 | 91 | 105 | 1 | 1 | 4 | 400 | 2000 | 2,39 |
GEEW90ES | 90 | 130 | 90 | 50 | 99 | 115 | 1 | 1 | 4 | 488 | 2440 | 3,21 |
GEEW100ES | 100 | 150 | 100 | 55 | 113 | 130 | 1 | 1 | 4 | 607 | 3030 | 4,79 |
GEEW110ES | 110 | 160 | 110 | 55 | 124 | 140 | 1 | 1 | 4 | 654 | 3270 | 5,78 |
GEEW125ES | 125 | 180 | 125 | 70 | 138 | 160 | 1 | 1 | 4 | 950 | 4750 | 8,49 |
GEEW160ES | 160 | 230 | 160 | 80 | 177 | 200 | 1 | 1 | 4 | 1360 | 6800 | 16,5 |
GEEW200ES | 200 | 290 | 200 | 100 | 221 | 250 | 1,1 | 1,1 | 4 | 2120 | 10600 | 32,1 |
GEEW250ES | 250 | 400 | 250 | 120 | 317 | 350 | 1,1 | 1,1 | 4 | 3750 | 17800 | 99,1 |
GEEW320ES | 320 | 520 | 320 | 160 | 405 | 450 | 1,1 | 1,1 | 4 | 6200 | 30500 | 225 |
