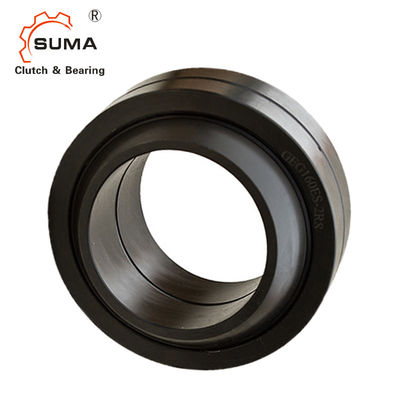

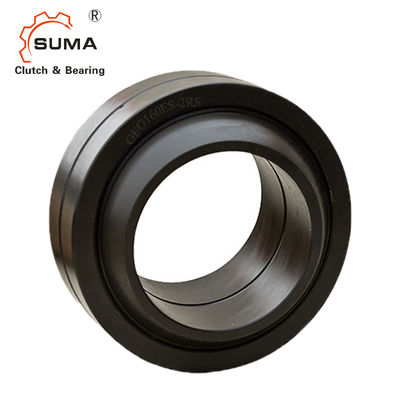

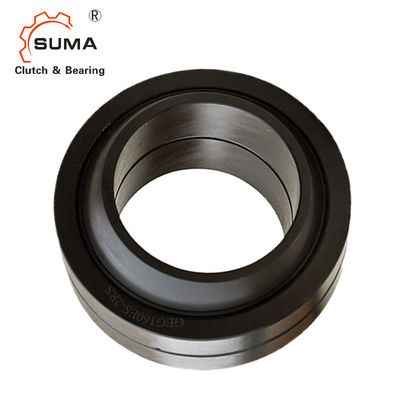

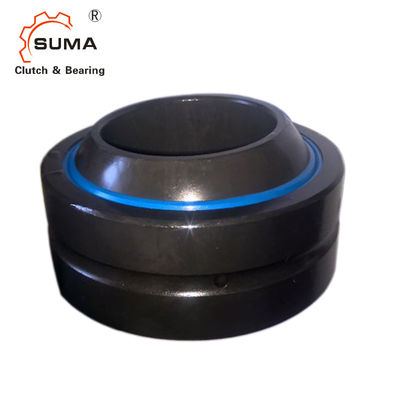

Plaine sphérique radiale de GEG120ES
Caractéristiques
GEG. E : Comme série GE. E, mais avec un anneau intérieur plus large et plus grand en dehors du diamètre, pour le rapport de la disposition où un plus grand angle de l'inclinaison est nécessaire, qui convient à un plus grand mécanisme de charges.
GEG. .ES : Comme série GE. .ES, mais comme anneau intérieur plus large et plus grand diamètre, pour soutenir la disposition où un plus grand angle si l'inclinaison est nécessaire qui convient à un plus grand mécanisme de charges.
GEG. .ES 2RS : Comme série GE. .ES 2RS, mais comme anneau intérieur plus large et plus grand diamètre, pour soutenir la disposition où un plus grand angle si l'inclinaison est nécessaire qui convient à un plus grand mécanisme de charges, ou un trou dans l'embout à rotule. Il a des caractéristiques de grande capacité de charge, support facile et démontage et simplification de mécanisme.
Dimensions et capacités
Modèle Article |
Dimensions | Estimations de charge (KN) | Poids (Kilogramme) |
|||||||||
d | D | B | C | le DK | rs minute |
r1s minute |
α | Dynamique | Charge statique | |||
GEG4E | 4 | 14 | 7 | 4 | 10 | 0,3 | 0,3 | 20 | 3,4 | 17 | 0,005 | |
GEG5E | 5 | 16 | 9 | 5 | 13 | 0,3 | 0,3 | 21 | 5,5 | 27 | 0,008 | |
GEG6E | 6 | 16 | 9 | 5 | 13 | 0,3 | 0,3 | 21 | 5,5 | 27 | 0,006 | |
GEG8E | 8 | 19 | 11 | 6 | 16 | 0,3 | 0,3 | 21 | 8,1 | 40 | 0,014 | |
GEG10E | 10 | 22 | 12 | 7 | 18 | 0,3 | 0,3 | 18 | 10 | 53 | 0,021 | |
GEG12E | 12 | 26 | 15 | 9 | 22 | 0,3 | 0,3 | 18 | 16 | 84 | 0,033 | |
Il n'y a aucune patte d'araignée ou trou d'huile dans les tailles ci-dessus. | ||||||||||||
GEG15ES | GEG15ES-2RS | 15 | 30 | 16 | 10 | 25 | 0,3 | 0,3 | 16 | 21 | 106 | 0,049 |
GEG17ES | GEG17ES-2RS | 17 | 35 | 20 | 12 | 29 | 0,3 | 0,3 | 19 | 30 | 146 | 0,083 |
GEG20ES | GEG20ES-2RS | 20 | 42 | 25 | 16 | 35,5 | 0,3 | 0,6 | 17 | 48 | 240 | 0,153 |
GEG25ES | GEG25ES-2RS | 25 | 47 | 28 | 18 | 40,7 | 0,6 | 0,6 | 17 | 62 | 310 | 0,203 |
GEG30ES | GEG30ES-2RS | 30 | 55 | 32 | 20 | 47 | 0,6 | 1 | 17 | 79 | 399 | 0,304 |
GEG35ES | GEG35ES-2RS | 35 | 62 | 35 | 22 | 53 | 0,6 | 1 | 16 | 99 | 495 | 0,408 |
GEG40ES | GEG40ES-2RS | 40 | 68 | 40 | 25 | 60 | 0,6 | 1 | 17 | 127 | 637 | 0,542 |
GEG45ES | GEG45ES-2RS | 45 | 75 | 43 | 28 | 66 | 0,6 | 1 | 15 | 156 | 780 | 0,713 |
GEG50ES | GEG50ES-2RS | 50 | 90 | 56 | 36 | 80 | 0,6 | 1 | 17 | 245 | 1220 | 1,14 |
GEG60ES | GEG60ES-2RS | 60 | 105 | 63 | 40 | 92 | 1 | 1 | 17 | 313 | 1560 | 2,05 |
GEG70ES | GEG70ES-2RS | 70 | 120 | 70 | 45 | 105 | 1 | 1 | 16 | 400 | 2000 | 3,01 |
GEG80ES | GEG80ES-2RS | 80 | 130 | 75 | 50 | 115 | 1 | 1 | 14 | 488 | 2440 | 3,64 |
GEG90ES | GEG90ES-2RS | 90 | 150 | 85 | 55 | 130 | 1 | 1 | 15 | 607 | 3030 | 5,22 |
GEG100ES | GEG100ES-2RS | 100 | 160 | 85 | 55 | 140 | 1 | 1 | 14 | 654 | 3270 | 6,05 |
GEG110ES | GEG110ES-2RS | 110 | 180 | 100 | 70 | 160 | 1 | 1 | 12 | 950 | 4750 | 9,68 |
GEG120ES | GEG120ES-2RS | 120 | 210 | 115 | 70 | 180 | 1 | 1 | 16 | 1070 | 5350 | 14,01 |
GEG140ES | GEG140ES-2RS | 140 | 230 | 130 | 80 | 200 | 1 | 1 | 16 | 1360 | 6800 | 19,01 |
GEG160ES | GEG160ES-2RS | 160 | 260 | 135 | 80 | 225 | 1,1 | 1,1 | 16 | 1530 | 7650 | 20,02 |
GEG180ES | GEG180ES-2RS | 180 | 290 | 155 | 100 | 250 | 1,1 | 2,1 | 14 | 2120 | 10600 | 32,21 |
GEG200ES | GEG200ES-2RS | 200 | 320 | 165 | 100 | 275 | 1,1 | 3,1 | 15 | 2320 | 11600 | 45,28 |
GEG220ES | GEG220ES-2RS | 220 | 340 | 175 | 100 | 300 | 1,1 | 4,1 | 16 | 2550 | 12700 | 51,12 |
GEG240ES | GEG240ES-2RS | 240 | 370 | 190 | 110 | 325 | 1,1 | 5,1 | 15 | 3030 | 15190 | 65,12 |
GEG260ES | GEG260ES-2RS | 260 | 400 | 205 | 120 | 350 | 1,1 | 6,1 | 15 | 3570 | 17850 | 82,44 |
GEG280ES | GEG280ES-2RS | 280 | 430 | 210 | 120 | 375 | 1,1 | 7,1 | 15 | 3800 | 19100 | 97,21 |
